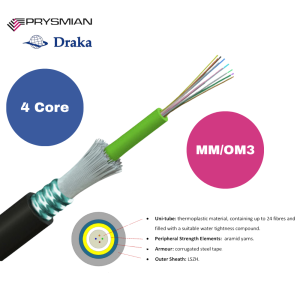

Suitable for indoor/outdoor duct buried application requiring flame retardant, low smoke and halogen free environment, UV resistant, steel tape armoring and anti-rodent.
ANSI/TIA-568-C.3, ISO/IEC 11801, IEC 60794-3-10, RoHS
IEC60332-3-22, IEC60332-3-24, IEC60332-1, IEC60754-1/2, IEC61034-2

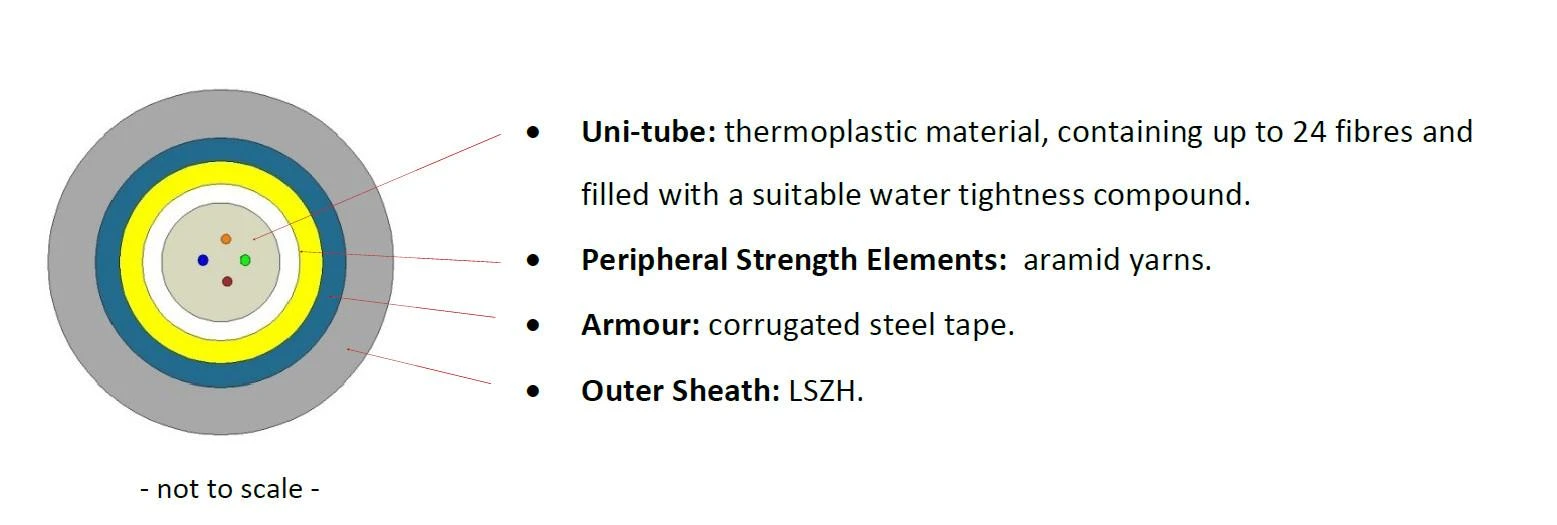

| No. of Fibres | 2, 4, 6, 8, 12, 24 |
| Design | 1×24 |
| Loose Tube / Filler nominal - Ø | 2.8 mm |
| Sheath nominal thickness | 1.8 mm |
| Cable nominal diameter | 8.7 mm |
| Cable nominal weight | 95 kg/km |
| Min. bending radius |
Without Tension: 10×Cable-Ø Under Maximum Tension: 20×Cable-Ø |
| Temperature Range |
Installation: -10°C to +60°C Transport & Storage: -40°C to +70°C Operation: -40°C to +70°C |
SKU: UTM1.8004M3
Categories: Stucture Cable, Fiber Optic & FTTH Cable
