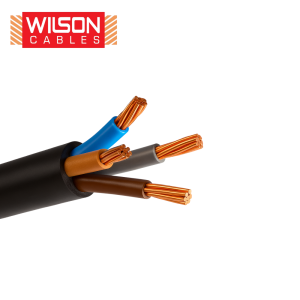

WILSON XLPE Insulated PVC or LSOH Sheathed Unarmoured Power Cables
Application, Construction, and Technical Details
Application
This cable is preferably used for supplying main power / as a control cable. It is also used for industrial installation such as in cable duct, cable trunking, cable tray, cable ladder and in switchgear.
Use LSOH sheathed cable if low smoke halogen free properties are required.
Construction
1. Conductor: Plain Annealed, Stranded Circular Non-Compacted or Circular Compacted or Shaped Copper 2. Insulation: XLPE 3. Sheath: PVC or LSOH 4. Insulation Colour:
- 1C: Natural
- 2C: Blue & Brown
- 3C: Brown, Black & Grey
- 4C: Blue, Brown, Black & Grey
- 3C + E: Brown, Black, Grey + Green/Yellow
- 4C + E: Brown, Black, Grey, Blue + Green/Yellow
- 5C & above: White cores printed with numbers 5. Sheath Colour: Black
Technical Data
Applicable Standard: IEC 60502-1 Rated Voltage: 600/1000 V Testing Voltage: 3.5 kV / 5 min Operating Temperature: Max. 90°C
